SS VentSaver Standing Seam Mounting Plate Kit (Model 12-24) – Non-Penetrating
$325.00 CAD
Passer aux informations sur le produit
SS VentSaver Standing Seam Mounting Plate Kit (Model 12-24) – Non-Penetrating
$325.00 CAD
Canada Snow Guards · Genuine SnoBlox-Snojax
Canadian stock — Paris, ONCAD pricing · No dutiesManufacturer warrantyMade in the USA

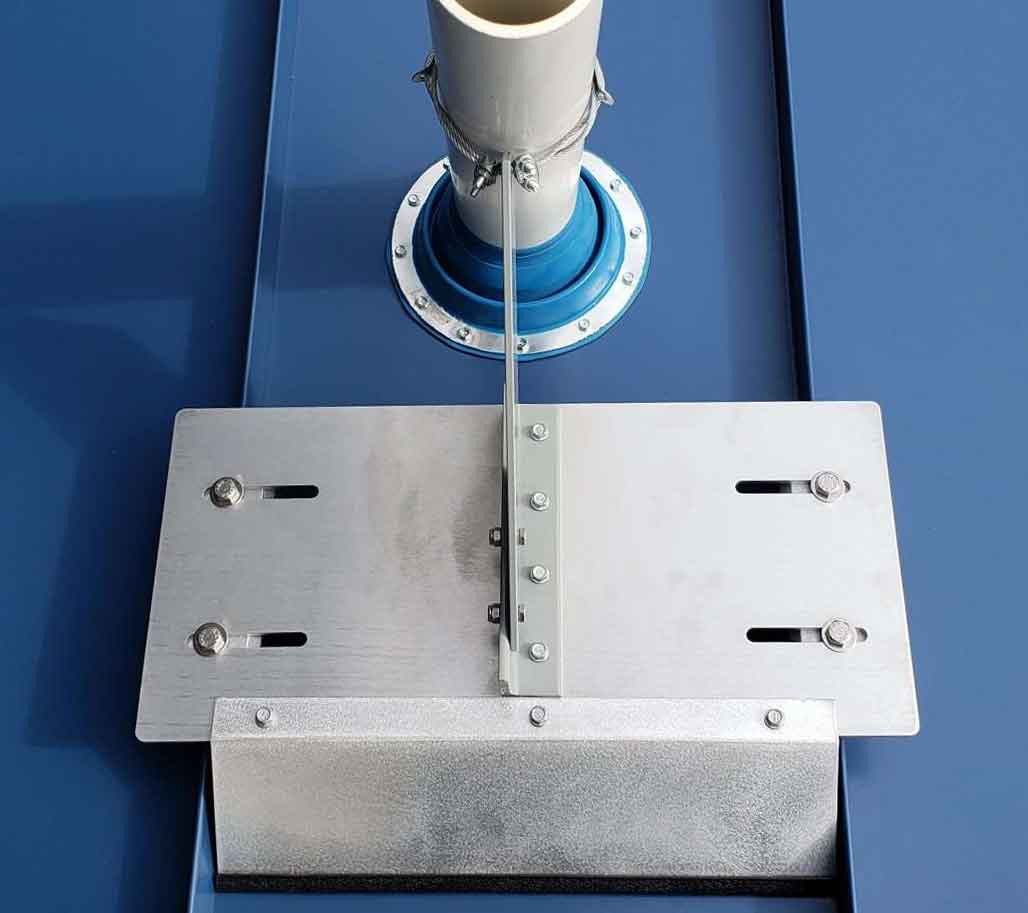

Standing seam panels float — screwing anything through them causes leaks, panel damage and voided roof warranties. The SS VentSaver Standing Seam Mounting Plate Kit (Model 12-24) solves it: a clamp-on aluminum plate that lets you mount any VentSaver on a standing seam metal roof with zero penetrations, even when your vent pipe or chimney lines up with a seam.
What the SS plate does

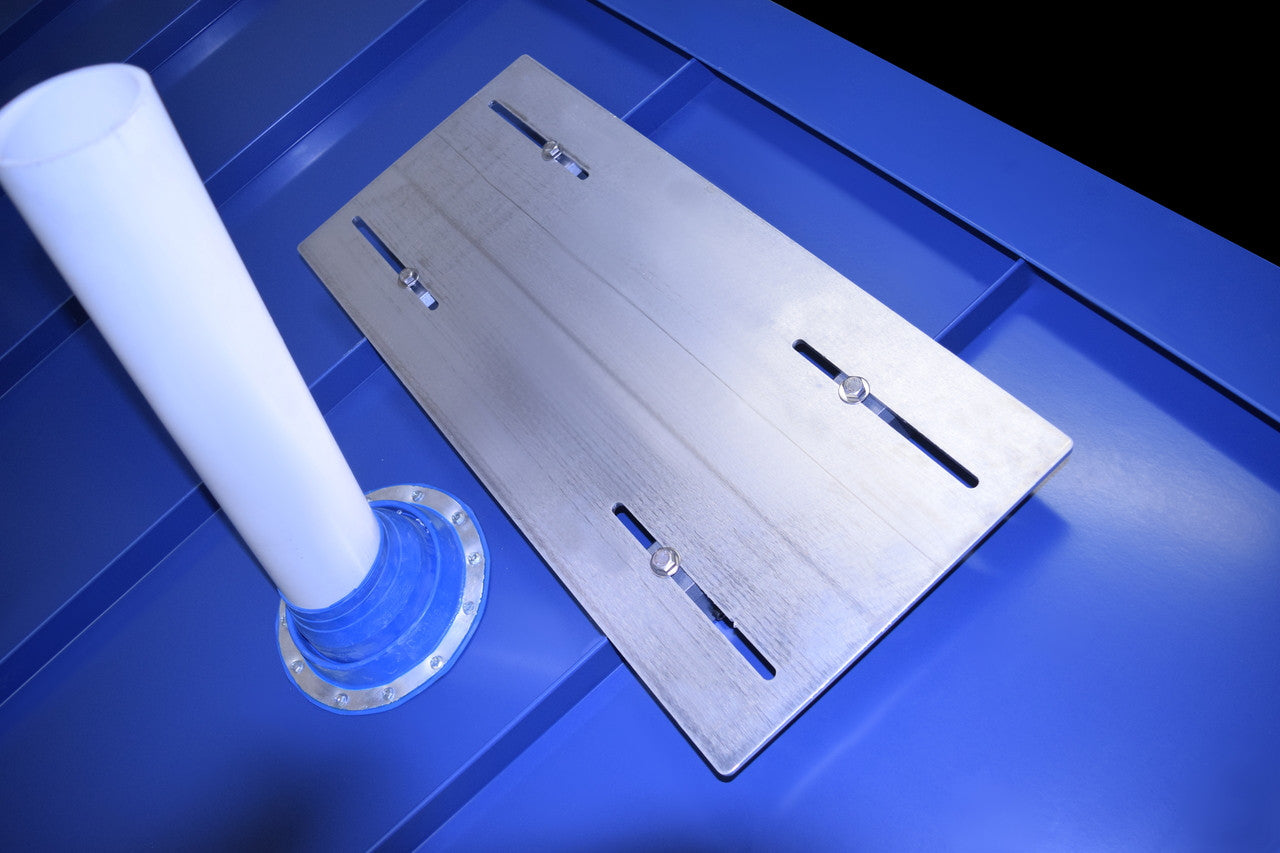

Four universal RoofClamp RCT clamps grip the seams with cupped-tip stainless set screws — a proven posi-lock attachment that holds firm without piercing the panel. The 12" × 27" adjustable aluminum plate spans the seams with horizontal channels for seam spacing up to 24", giving you a large, adjustable surface to position the VentSaver exactly behind the pipe. A built-in ice ramp protects the base of the pipe, and the ramp can be field-cut with basic tools to fit your panel profile.

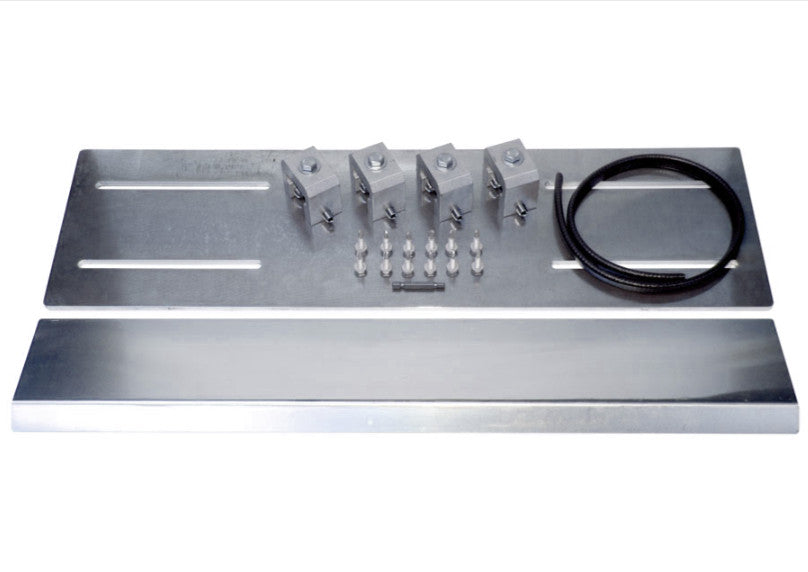

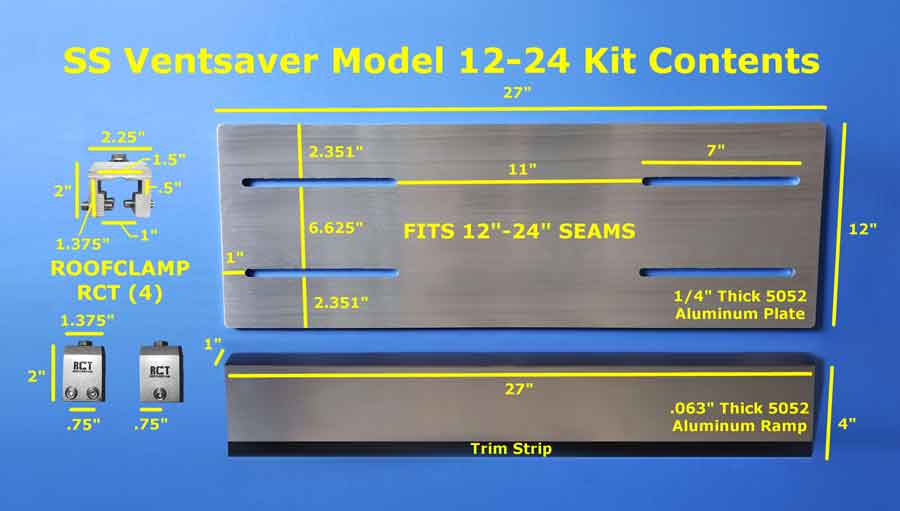

What's in the kit
- 12" × 27" SS VentSaver adjustable aluminum plate
- Custom-fit ice ramp with edging strip (may need notching for some profiles)
- 4 × RoofClamp RCT universal seam clamps
- 12 stainless set screws + 4 stainless top bolts and washers
- 12 Tek screws
- Mounting kit only — VentSaver diverter sold separately
Panel compatibility
Recommended for standing seam panels 16" to 24" wide. The RCT clamps fit over 500 standing seam profiles including T-seams, bulb seams, SnapLok, single-lock, double-lock and MR-24. Please include your seam height (e.g. 1", 1.5", 2") in your order notes — or send a photo of one seam and we'll confirm fit before shipping.

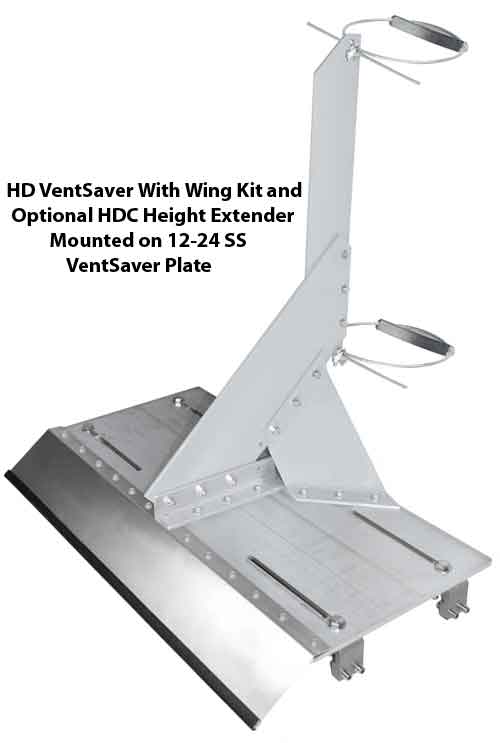

Works with every VentSaver model
- VentSaver EZ — vent and stack pipes
- VentSaver HD — heavy snow regions

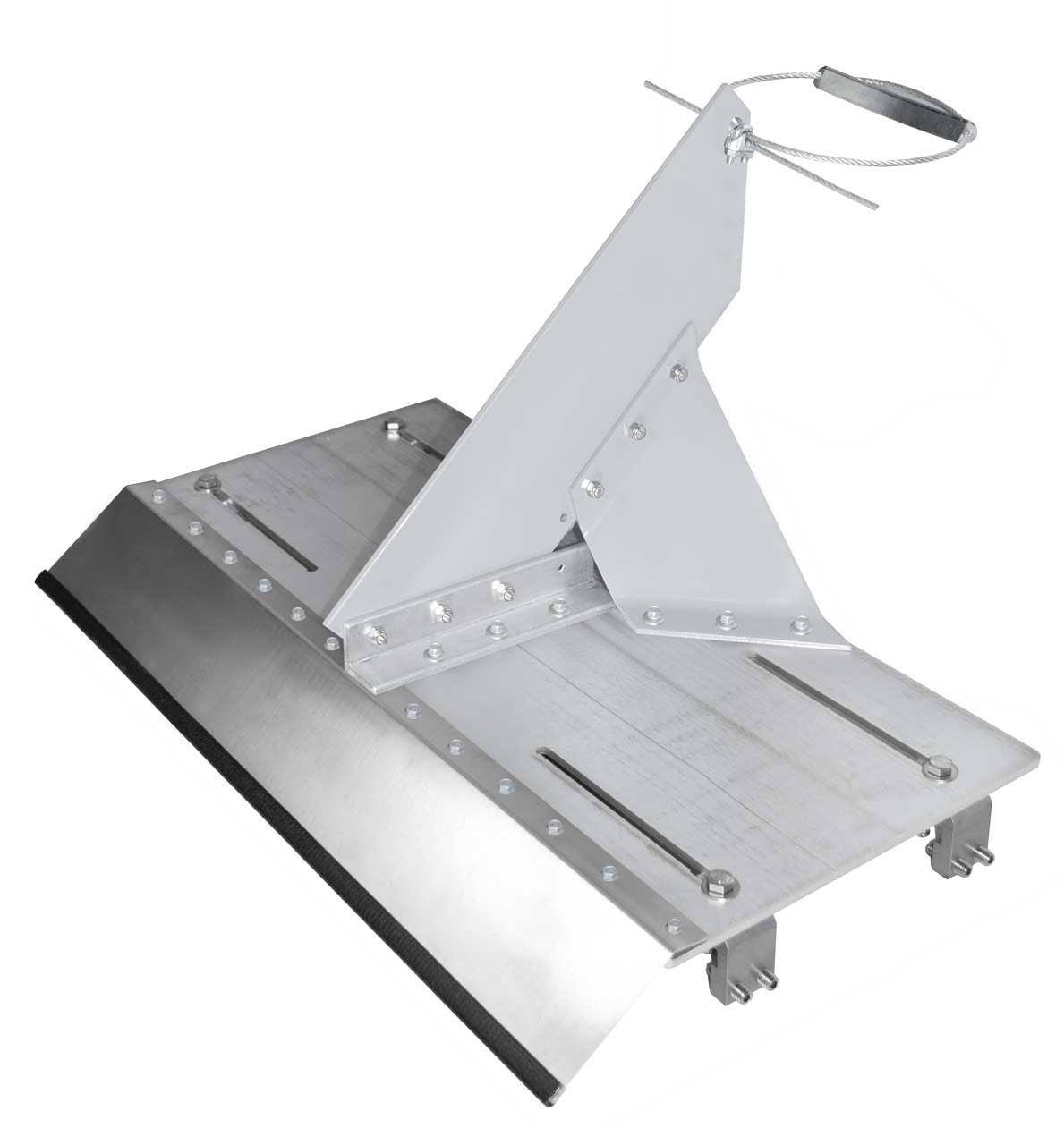

- VentSaver Extreme — large chimneys and stove pipes (wing kit required)
Specifications
| Use | Non-penetrating VentSaver mount for standing seam metal roofs |
| Model | SS VentSaver Plate 12-24 (panels 16"–24" wide) |
| Material | Aluminum plate, ramp and clamp bodies · stainless steel hardware · coated Tek screws — fully non-corrosive |
| Attachment | 4 × RoofClamp RCT — clamps seams, no holes, no leaks, roof warranty safe |
| SKU | SSVS-12-24-KIT-NO (plate kit only, VentSaver not included) |
| Origin & stock | Made in the USA · genuine SnoBlox-Snojax, stocked in Paris, Ontario |
Installation at a glance
- Clamp the plate across the seams just uphill of the pipe or chimney — basic hand tools only.
- Torque RCT set screws to 90 in-lbs; the cupped tips lock without penetrating the seam.
- Field-cut the ice ramp if it spans a seam mid-plate — hack saw, chop saw or grinder.
- Never use this plate as a step or tie-off point for fall protection.
Why buy from Canada Snow Guards
As the authorized Canadian SnoBlox-Snojax distributor, we sell the genuine article with the manufacturer's warranty behind it. Stock sits in Paris, Ontario and ships across every province and territory in Canadian dollars — no duties, no brokerage, no border surprises — and every order can start with a free engineered layout.
Not sure this plate fits your seams? Send a photo of one seam with its height and your panel width for a free compatibility check — usually back within one business day.
