Official SnoBlox-Snojax paperwork
Snow guard installation instructions, spec sheets, cut sheets, warranty and load-test data for every SnoBlox-Snojax guard, SnoBar® and ColorBar® system we stock in Paris, Ontario. Filter by product or roof type, then print.
58 filesInstall, spec & cut sheets
Since 1976SnoBlox-Snojax made
FreeNo sign-up, print-ready
Find your paperwork
What are you installing?
Filter by product type, narrow it by roof, or search by name. Your filters combine, so you only see the guides that fit your job.
1Product type
2Roof type (optional)
No product matches that combination. Try another roof type, or email support@canadasnowguards.com and we'll send the paperwork.
Pad-style snow guards
Snow guards
Polycarbonate and stainless guards set in staggered rows across the whole roof. One manual covers them all. Each card adds the product's spec and cut sheet.
Clamp-on · no roof penetrations

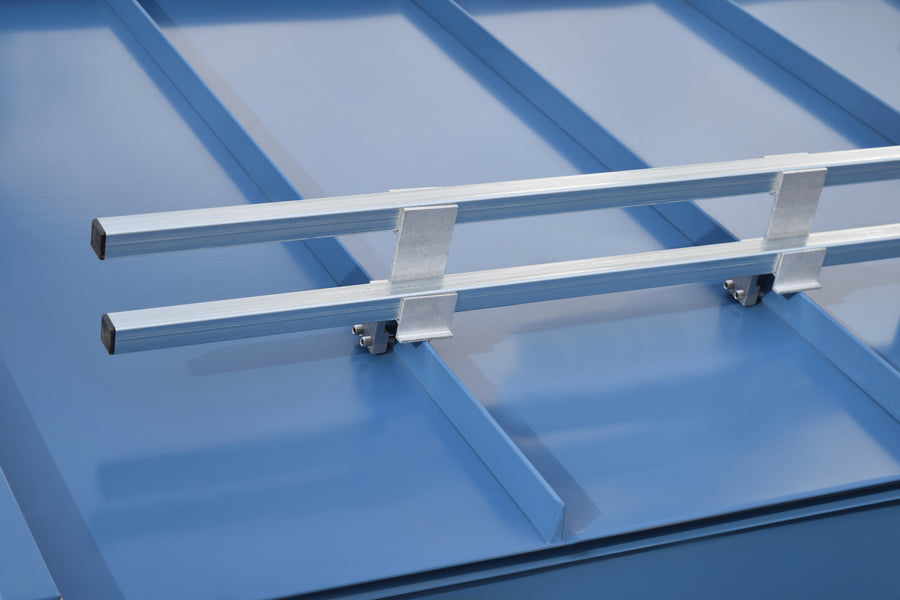

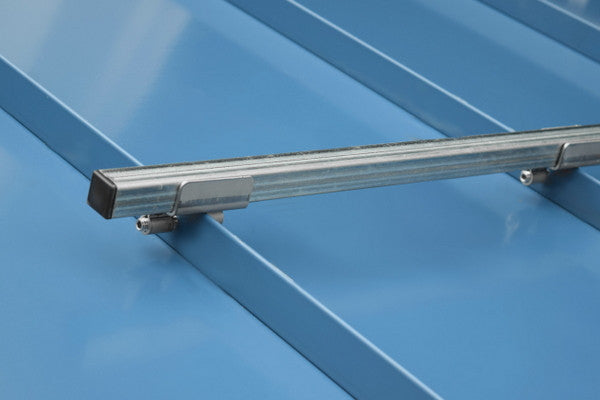

Standing seam snow rails
SnoBar (galvanized) and ColorBar (colour-matched aluminum) clamp to the seam. Choose the guide for your clamp. Unsure which clamp fits? Check the clamp compatibility chart.
Exposed fastener · corrugated · shingle · TPO

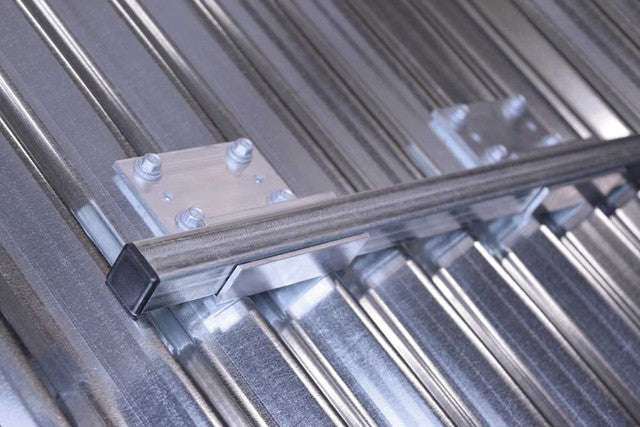

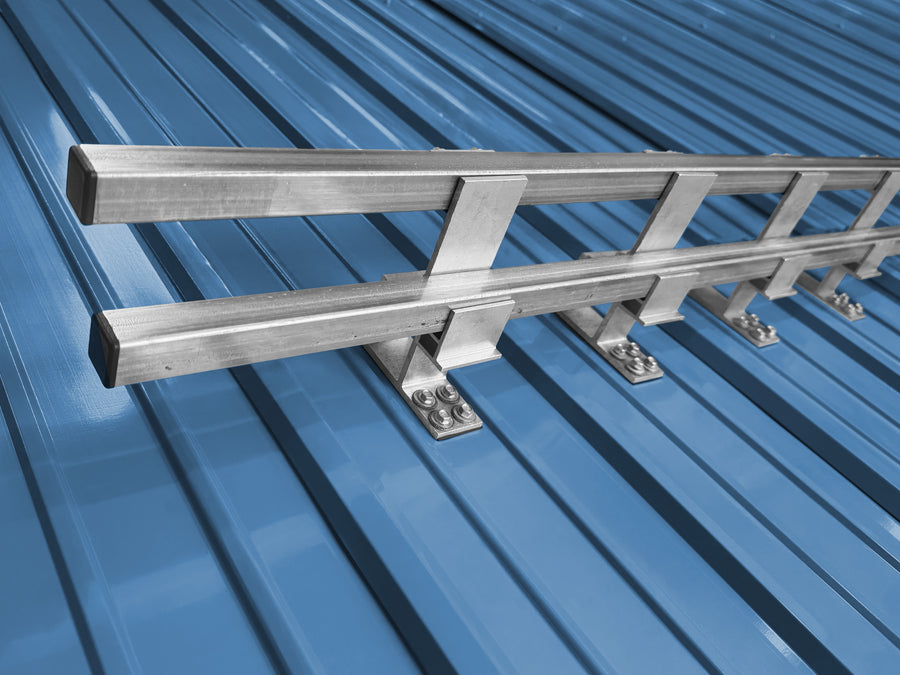

Screw-down & specialty rails
Rail systems for roofs with visible screws, wavy corrugated steel, asphalt shingles and single-ply membranes.
Aluminum cleats & clamps
SnoCleat & RoofClamp
Cleat-style snow guards and the universal RoofClamp they mount on.
Protect what pokes through
VentSaver & SataMount
Vent, chimney and satellite protection. Sliding snow shears off pipes and dishes that aren't guarded.
Adhesives, sealants & safety
SB-190, NovaFlex & RidgePro
Technical data for the adhesive and sealant in our kits, plus the RidgePro peak anchor.
Read before you climb
Three steps to a clean install
Snow guards only work when the product, the layout and the install all match the roof. Here's the order we recommend.
01
Confirm your panel
Match your panel profile to the right guard or clamp. Our panel compatibility calculator does it in seconds.
02
Get your layout
Row count and spacing depend on pitch, panel and your local snow load. We draw a free layout for your roof.
03
Install to the guide
Follow the SnoBlox-Snojax instructions below, and keep the spec sheet on hand for your inspector or engineer.

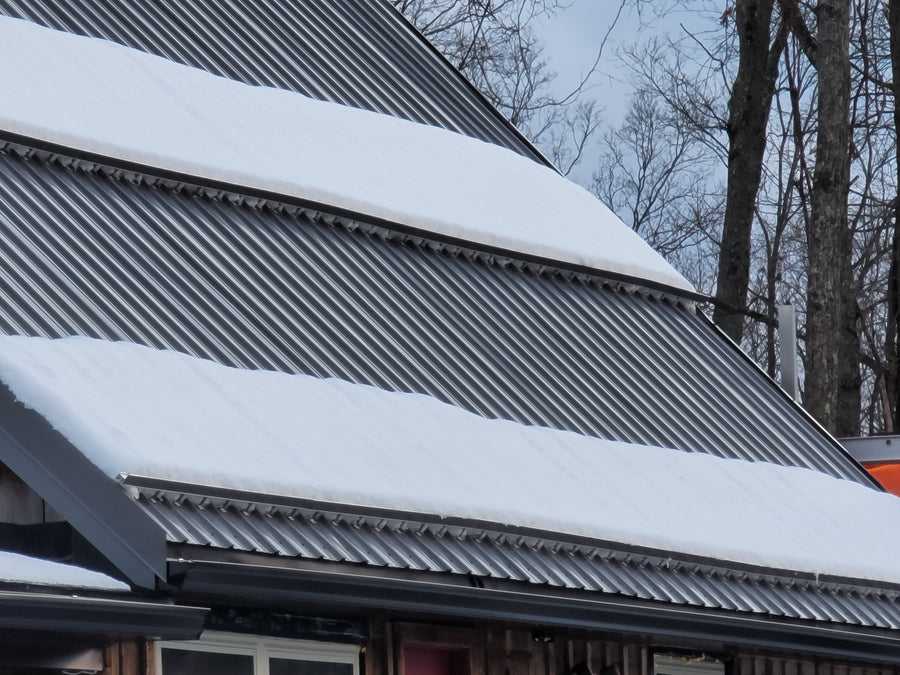

Snow guards move the snow load into your roof panels. Panels must be properly attached to the structure, and guards belong across the whole roof plane, not just above a door or vent.
- Standing seam SnoBar/ColorBar systems call for a minimum 24-gauge steel panel with a 1" seam.
- Weigh the risk of ice damming where snow will be held.
- No system retains 100% of snow and ice. The designer, installer or owner confirms the system suits the roof.
Free layout from our team
- Send your pitch, panel type and roof length
- We match the product and spacing to your local snow load
- Warrantied quote in Canadian dollars, usually within one business day
For engineers, architects & inspectors
Warranty, testing & engineering
The paperwork that gets a job signed off: manufacturer warranty, independent load testing and fit charts.
Lifetime warranty
SnoBlox-Snojax manufacturer warranty terms.
Download PDFIndependent load test results
Tested by Architectural Testing, Inc. (ATI).
Download PDFSnoBar & ColorBar clamp compatibility
Match the clamp to your seam profile.
Download PDFRoofClamp panel compatibility
A panel-by-panel fit chart.
Download PDFU.S. Army Corps snow load commentary
Background reading on roof snow loads.
Download PDFInstaller questions
Before you order or install
Which installation instructions do I need?
Match the guide to your product and how it mounts. All pad-style guards (Deuce, Ace, SnoJax, IceJax, EcoJax, SnowBreaker, SnowCatcher) share one snow guard guide. SnoBar and ColorBar rails have separate guides for aluminum RoofClamps, stainless clamps, screw-down ColorBrackets and two-bar systems. Pick your roof type above to narrow it down, or send us a photo.
Are these the official manufacturer instructions?
Yes. Every document is published by SnoBlox-Snojax, the manufacturer, and provided by Canada Snow Guards as an authorized Canadian SnoBlox-Snojax distributor.
Should I glue or screw my snow guards down?
Many of our pad-style guards come in both adhesive (SB-190) and screw-down kits, and the snow guard guide covers each method. Adhesive keeps the panel free of holes, while screw-down mounting suits exposed-fastener roofs. The SB-190 and NovaFlex data sheets list each product's technical requirements.
How many snow guards do I need, and how far apart?
It depends on your roof pitch, panel profile, roof length and local snow load. We draw free layouts matched to your roof. Send your details through the quote form.
What does the SnoBlox-Snojax warranty cover?
Goods proven defective due to materials are replaced or the purchase price refunded, and liability is capped at the purchase price. The designer, installer or owner is responsible for confirming the system suits the roof. Read the full warranty (PDF).
Can I print these or send them to my inspector?
Yes. Every document is a free download with no sign-up. Print it, email it or attach it to a permit or submittal package.
Still not sure?
Send us a photo of your roof. We'll tell you which guide to follow.
Tell us your town, roof pitch and panel. We'll confirm the right product, spacing and paperwork, with a free layout and a warrantied quote in Canadian dollars.
Documents are published by SnoBlox-Snojax and provided by Canada Snow Guards as an authorized distributor. SnoBlox®, SnoJax®, SnoBar®, ColorBar® and related marks belong to their owner.
