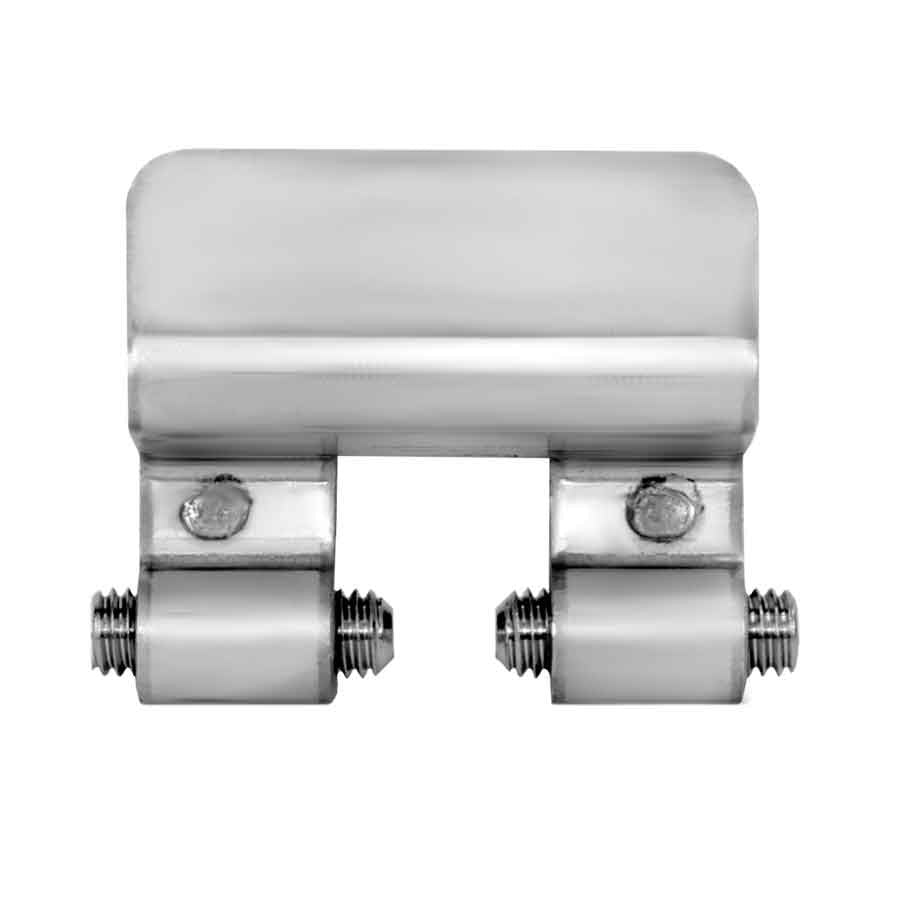

Stainless Steel Standing Seam Roof Mounting Clamp — SnoBar® & ColorBar®

The clamp that started it all. This is the heavy 12-gauge, 304 stainless steel seam clamp that mounts SnoBar® and ColorBar® snow rails to standing seam metal roofs — a direct derivative of the very first seam-mounted snow-rail clamp introduced by SnoBar in 1992. Decades of field history, none of the guesswork.

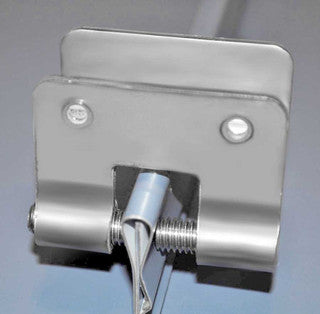

It attaches to your roof with two included cup-tip set screws that bite into the standing seam and form a posi-lock connection — no holes, no fasteners through the panel, and no voided roof warranty. Because the clamp is carried by the panel seam itself rather than relying on the set screws alone, you get a structurally stable anchor point for the full snow-retention system.

The fastest-installing clamp in the industry

This clamp is top-loading: it drops straight onto the seam and does not need to be fed up the roof or threaded onto the bar in sequence. Crews spend less time per attachment, which means lower labour on every standing seam project — one of the reasons this design has been the benchmark for over 30 years.

Built for SnoBar® & ColorBar® snow rails

This is the dedicated mounting clamp for the SnoBar® and ColorBar® continuous bar systems — the strongest snow retention available for steep pitches, long rafter runs, and high snow-load regions across Canada. Cup-tip set screws hold far better than slippery round- or oval-nose screws and require less torque, so they're gentler on the seam while still locking the bar solidly in place.

Confirm your seam profile before ordering

Compatible with the standing seam panels installed most often across Canada — including Vicwest, Westman Steel, Westform, London Eco-Metal, Ottawa Valley Metal, Classic Products (ClickLock & Armadura), Interlock, and CLM Steel Roofing — when the seam profile matches.

This is a system component — not a build-your-own kit

Specifications

Material	304 stainless steel — high corrosion resistance
Gauge	Heavy 12-gauge
Set screws	Two cup-tip set screws included (posi-lock connection)
Attachment	Non-penetrating — clamps to the standing seam, no roof holes
Installation	Top-loading drop-in; no panel feeding required
Compatible bars	SnoBar® and ColorBar® snow rails
Seam compatibility	Asymmetrical standing seam profiles (mechanical-lock / snap-lock)
Typical torque	Cup-tip screws use lower torque than round/oval-nose screws — torque to your project specification
Heritage	Derivative of the original 1992 SnoBar seam clamp
Ships from	Paris, Ontario, Canada

Why Canadians order from Canada Snow Guards

• Stocked and shipped from Paris, Ontario — fast delivery with no duties and no border delays.
• Proven, patented seam-mount heritage — the longest-standing snow rail clamp design on the market.
• Free project design & spacing support — we'll confirm your seam type and recommend a clamp layout for your snow region.
• Powder-coating available — match clamps and bars to your roof at our Ontario facility. View the colour chart →

Frequently asked questions

What roof type does this clamp fit?

It's designed for asymmetrical standing seam metal roof panels. For symmetrical bulb or "T" seams, use the RoofClamp RCT with the RCB-3 bracket instead. Confirm your seam profile before ordering — we're happy to verify it for you.

Does it penetrate or damage the roof?

No. The clamp grips the standing seam using two cup-tip set screws — there are no screws or holes through the roof panel, so it won't compromise the seams or the roof warranty.

Can I buy these clamps and build my own rail system?

No. SnoBar® and ColorBar® are engineered systems. Clamp spacing must follow a layout designed for your roof and snow load. These clamps are sold as part of a designed system, and assembling your own configuration is not covered by warranty. We provide free layout guidance.

Why is it faster to install?

It's top-loading — it drops directly onto the seam without being fed up the roof or threaded along the bar. Fewer steps per attachment means less labour on the job.

Does it ship from Canada?

Yes — it ships from our facility in Paris, Ontario, with no duties and no border delays.
